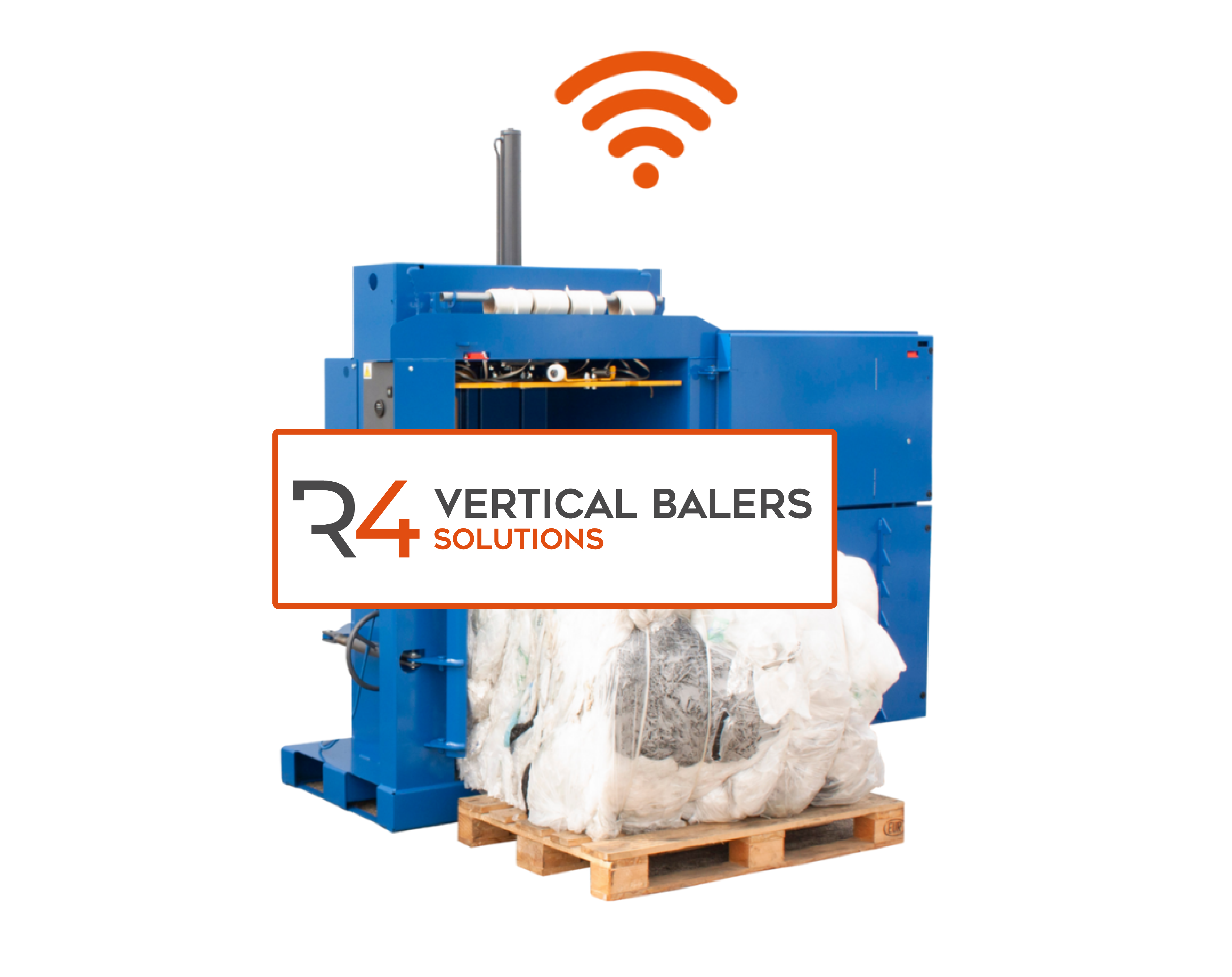

R4 Vertical Balers Solutions
INTRODUCTION
This system is an innovative device for remote monitoring of waste balers. It works with any baler from any manufacturer.
Monitoring becomes fundamental as a remote control tool for improving work performance and for optimizing production efficiency.
In particular, R4 Detect, whose heart is made up of a data acquisition and processing card with installed a GSM / GPRS + GPS modem and a GPS / GSM antenna, is a device applicable to the work plant and remotely controlled through R4 Monitoring, the management system directly from your PC, tablet or smart phone.
FEATURES:
Depending on your balers, the system provides you the following information:
- Power status
- Working hours
- Bale full (if available on the baler)
- Emergencies
- Bales counter
TECHNICAL SPECIFICATIONS:
R4 Detect consists of the following elements:
- Plastic fixing case (6 din modules). The 2 mm thick plate casing allows easy mounting on panels of electrical panels by anchoring them on DIN support rails.
- Data acquisition and processing card. The data acquisition card can receive up to 6 5-24 Vac / Vdc digital signals and 4 analog signals. At the bottom of the card there is a settable and programmable button according to the specific requests; next to this there is an LED used as an operating indicator.
- Electronic card with GPS / GPRS modem for sending and receiving data. The modem is attached to the top of the card from which it receives power. The telephone SIM card must be positioned in the appropriate slot to allow data communication.
HOW IT WORKS:
R4 Detect is installed directly on the machine, providing the customer with credentials to access and control the chosen system.
The device communicates via a SIM card and uses the Internet to transfer and communicate data at any time.
INSTALLATION:
Self-installation kit with specific manual available in our support area. (Contact us for Professional installation options/fees).
Need an MCM-02 platform license.
