How to install R4-L1 monitoring device on Bergmann APB compactor
Be sure you have read this manual before proceding, specially chapter 6 and chapter 7.
1. R4-L1 Cabling for Bergmann APB
In the image below is reported the meanings of each digital input of the monitoring system.

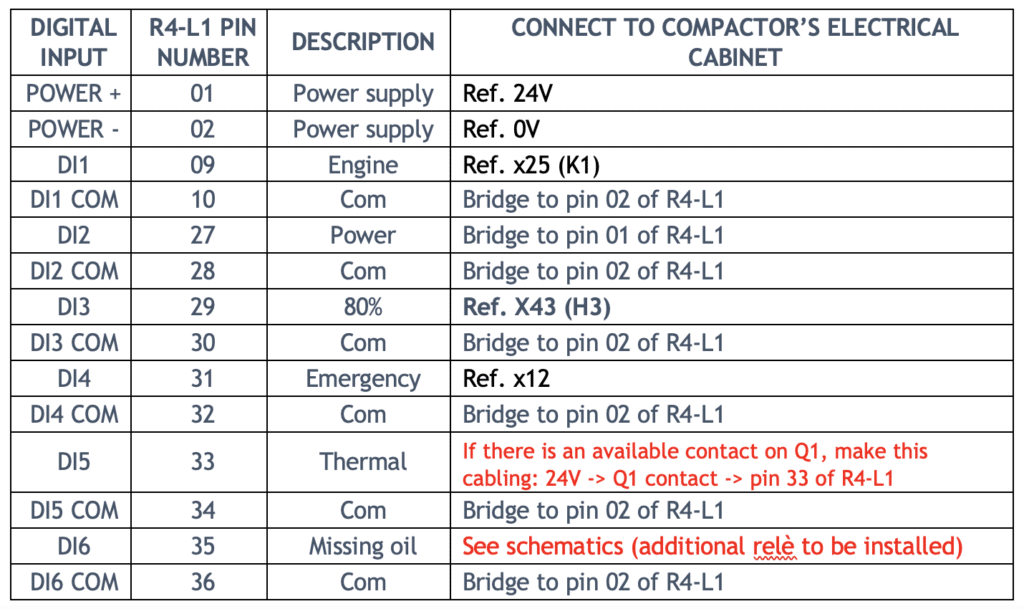

In the table below is reported how to cable the brown multi-wire R4-L1 on the compactor.

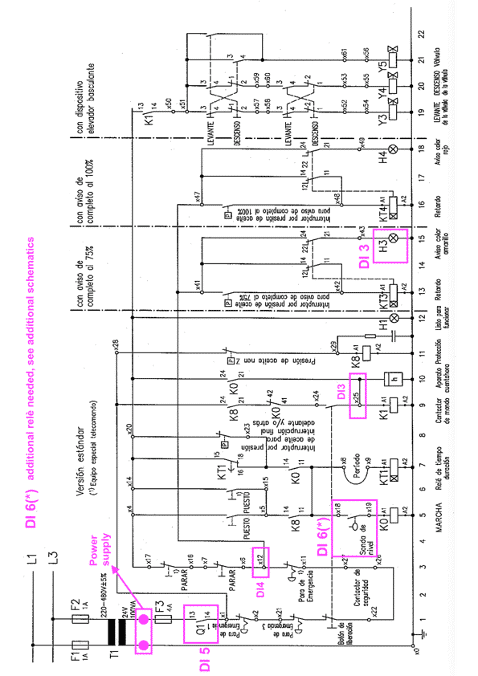

2 Bergmann wiring diagrams
